Solid Electrolyte Development Background and Objectives
Solid electrolytes have emerged as a critical component in the evolution of next-generation energy storage technologies, particularly for advanced batteries with enhanced safety and performance characteristics. The development of solid electrolytes traces back to the 1970s, when researchers began exploring alternatives to liquid electrolytes to address safety concerns and performance limitations. Over the decades, three major categories have emerged as promising candidates: chloride, sulfide, and oxide-based solid electrolytes, each offering distinct advantages and challenges.
The technological evolution of solid electrolytes has accelerated significantly in the past decade, driven by the growing demand for safer, higher-energy-density batteries for electric vehicles, portable electronics, and grid-scale energy storage. Oxide-based electrolytes were among the first to be extensively studied, with materials like NASICON, perovskites, and garnets showing promising ionic conductivity. Sulfide-based electrolytes gained prominence in the 2000s due to their superior room-temperature ionic conductivity, while chloride-based systems represent a more recent development with potentially advantageous properties.
Current research objectives in solid electrolyte development focus on achieving ionic conductivities comparable to or exceeding those of liquid electrolytes (>10^-3 S/cm at room temperature), while maintaining mechanical stability and electrochemical compatibility with electrode materials. Additionally, researchers aim to develop manufacturing processes that enable cost-effective mass production of solid-state batteries incorporating these electrolytes.
The comparative study of chloride, sulfide, and oxide solid electrolytes is particularly significant as each system presents unique trade-offs. Oxide electrolytes offer excellent thermal and chemical stability but typically suffer from lower ionic conductivity. Sulfide electrolytes demonstrate superior ionic conductivity but are highly sensitive to moisture and air. Chloride electrolytes represent an emerging middle ground, potentially combining good ionic conductivity with improved stability compared to sulfides.
The technical goals for this comparative study include establishing comprehensive performance metrics across various operating conditions, identifying interfacial challenges with different electrode materials, and developing strategies to mitigate degradation mechanisms specific to each electrolyte class. Furthermore, the study aims to establish clear guidelines for electrolyte selection based on specific application requirements, considering factors such as operating temperature range, cycling stability, and safety parameters.
Understanding the fundamental ion transport mechanisms in these different electrolyte systems is another critical objective, as this knowledge can inform rational design of improved materials with optimized properties. This includes investigating the role of crystal structure, defect chemistry, and local coordination environments in facilitating fast ion conduction.
The technological evolution of solid electrolytes has accelerated significantly in the past decade, driven by the growing demand for safer, higher-energy-density batteries for electric vehicles, portable electronics, and grid-scale energy storage. Oxide-based electrolytes were among the first to be extensively studied, with materials like NASICON, perovskites, and garnets showing promising ionic conductivity. Sulfide-based electrolytes gained prominence in the 2000s due to their superior room-temperature ionic conductivity, while chloride-based systems represent a more recent development with potentially advantageous properties.
Current research objectives in solid electrolyte development focus on achieving ionic conductivities comparable to or exceeding those of liquid electrolytes (>10^-3 S/cm at room temperature), while maintaining mechanical stability and electrochemical compatibility with electrode materials. Additionally, researchers aim to develop manufacturing processes that enable cost-effective mass production of solid-state batteries incorporating these electrolytes.
The comparative study of chloride, sulfide, and oxide solid electrolytes is particularly significant as each system presents unique trade-offs. Oxide electrolytes offer excellent thermal and chemical stability but typically suffer from lower ionic conductivity. Sulfide electrolytes demonstrate superior ionic conductivity but are highly sensitive to moisture and air. Chloride electrolytes represent an emerging middle ground, potentially combining good ionic conductivity with improved stability compared to sulfides.
The technical goals for this comparative study include establishing comprehensive performance metrics across various operating conditions, identifying interfacial challenges with different electrode materials, and developing strategies to mitigate degradation mechanisms specific to each electrolyte class. Furthermore, the study aims to establish clear guidelines for electrolyte selection based on specific application requirements, considering factors such as operating temperature range, cycling stability, and safety parameters.
Understanding the fundamental ion transport mechanisms in these different electrolyte systems is another critical objective, as this knowledge can inform rational design of improved materials with optimized properties. This includes investigating the role of crystal structure, defect chemistry, and local coordination environments in facilitating fast ion conduction.
Market Analysis for Solid-State Battery Technologies
The global solid-state battery market is experiencing significant growth, driven by increasing demand for high-energy density, safe, and long-lasting energy storage solutions. Current market valuations place the solid-state battery sector at approximately $500 million in 2023, with projections indicating potential growth to reach $8-10 billion by 2030, representing a compound annual growth rate (CAGR) of over 35%.
Within this market, solid electrolytes represent a critical component, with chloride, sulfide, and oxide-based materials competing for dominance. Each electrolyte type addresses different market segments based on their unique properties. Oxide electrolytes currently hold the largest market share (approximately 45%) due to their established manufacturing processes and stability, particularly appealing to consumer electronics manufacturers prioritizing safety.
Sulfide electrolytes are gaining significant traction, especially in the automotive sector, where their superior ionic conductivity addresses range anxiety concerns. Their market share has grown from 20% to nearly 30% over the past three years, with major investments from automotive giants like Toyota, BMW, and Volkswagen accelerating their commercial development.
Chloride electrolytes, while representing a smaller market segment (approximately 15%), are showing promising growth in specialized applications requiring operation in extreme conditions, such as aerospace and military applications, where their unique electrochemical properties provide advantages.
Regional analysis reveals distinct market preferences, with Asian manufacturers (particularly in Japan, South Korea, and China) heavily investing in sulfide technologies, while North American companies focus more on oxide-based solutions. European research institutions and companies are exploring all three electrolyte types with significant public-private partnerships driving innovation.
Consumer electronics currently represents the largest application segment (38% of market demand), followed by electric vehicles (34%) and grid storage solutions (18%). However, the electric vehicle segment is projected to overtake consumer electronics by 2025, driven by major automakers' commitments to electrification and the superior performance promises of solid-state technology.
Market barriers include high manufacturing costs (currently 4-8 times higher than conventional lithium-ion batteries), scalability challenges, and material supply constraints. The cost differential is expected to narrow to 2-3 times by 2027 as production scales and manufacturing processes mature.
Investment in solid electrolyte technologies has seen remarkable growth, with venture capital funding increasing by 180% between 2020 and 2023, reaching over $2 billion annually. Strategic partnerships between material suppliers, battery manufacturers, and end-users are becoming increasingly common, accelerating commercialization timelines.
Within this market, solid electrolytes represent a critical component, with chloride, sulfide, and oxide-based materials competing for dominance. Each electrolyte type addresses different market segments based on their unique properties. Oxide electrolytes currently hold the largest market share (approximately 45%) due to their established manufacturing processes and stability, particularly appealing to consumer electronics manufacturers prioritizing safety.
Sulfide electrolytes are gaining significant traction, especially in the automotive sector, where their superior ionic conductivity addresses range anxiety concerns. Their market share has grown from 20% to nearly 30% over the past three years, with major investments from automotive giants like Toyota, BMW, and Volkswagen accelerating their commercial development.
Chloride electrolytes, while representing a smaller market segment (approximately 15%), are showing promising growth in specialized applications requiring operation in extreme conditions, such as aerospace and military applications, where their unique electrochemical properties provide advantages.
Regional analysis reveals distinct market preferences, with Asian manufacturers (particularly in Japan, South Korea, and China) heavily investing in sulfide technologies, while North American companies focus more on oxide-based solutions. European research institutions and companies are exploring all three electrolyte types with significant public-private partnerships driving innovation.
Consumer electronics currently represents the largest application segment (38% of market demand), followed by electric vehicles (34%) and grid storage solutions (18%). However, the electric vehicle segment is projected to overtake consumer electronics by 2025, driven by major automakers' commitments to electrification and the superior performance promises of solid-state technology.
Market barriers include high manufacturing costs (currently 4-8 times higher than conventional lithium-ion batteries), scalability challenges, and material supply constraints. The cost differential is expected to narrow to 2-3 times by 2027 as production scales and manufacturing processes mature.
Investment in solid electrolyte technologies has seen remarkable growth, with venture capital funding increasing by 180% between 2020 and 2023, reaching over $2 billion annually. Strategic partnerships between material suppliers, battery manufacturers, and end-users are becoming increasingly common, accelerating commercialization timelines.
Current Status and Challenges in Solid Electrolyte Research
Solid electrolytes have emerged as critical components in next-generation energy storage technologies, particularly for advanced batteries. The global research landscape reveals significant progress across three major solid electrolyte families: chloride, sulfide, and oxide-based materials. Each category demonstrates unique advantages and faces distinct challenges that influence their commercial viability.
Oxide solid electrolytes, particularly NASICON, perovskite, and garnet structures, exhibit excellent thermal and chemical stability with wide electrochemical windows (>4.5V). LLZO (Li7La3Zr2O12) garnets have attracted substantial attention due to their compatibility with lithium metal anodes. However, these materials typically suffer from lower ionic conductivities (10^-4 to 10^-3 S/cm) at room temperature compared to other electrolyte types and require high sintering temperatures (>1000°C), complicating manufacturing processes and increasing interfacial resistance.
Sulfide solid electrolytes, including Li2S-P2S5 glass-ceramics and thio-LISICON structures, demonstrate superior ionic conductivities approaching 10^-2 S/cm at room temperature. Their mechanical properties allow for better contact with electrodes and simpler processing at lower temperatures. However, these materials face significant challenges regarding air and moisture sensitivity, requiring stringent handling protocols. Additionally, their narrow electrochemical stability window limits compatibility with high-voltage cathode materials.
Chloride-based solid electrolytes represent a relatively newer research direction with promising ionic conductivity values. Li3YCl6 and Li3InCl6 have shown conductivities exceeding 10^-3 S/cm with potentially wider electrochemical windows than sulfides. Nevertheless, they share similar moisture sensitivity issues while presenting unique challenges in synthesis reproducibility and long-term stability.
A critical technical barrier across all solid electrolyte types remains the solid-solid interface management. The formation of stable interfaces between electrolytes and electrodes without significant resistance growth during cycling continues to challenge researchers worldwide. This interface challenge is compounded by volume changes during cycling that can create microcracks and capacity fade.
Manufacturing scalability presents another significant hurdle. Current laboratory-scale synthesis methods often involve complex procedures that are difficult to translate to industrial production. The cost-performance ratio remains unfavorable compared to liquid electrolytes, particularly for oxide systems requiring energy-intensive high-temperature processing.
Recent research trends indicate growing interest in composite and hybrid electrolyte systems that combine advantages from different material classes. Additionally, surface modification strategies and interface engineering approaches are gaining traction as potential solutions to the persistent interfacial resistance challenges.
Oxide solid electrolytes, particularly NASICON, perovskite, and garnet structures, exhibit excellent thermal and chemical stability with wide electrochemical windows (>4.5V). LLZO (Li7La3Zr2O12) garnets have attracted substantial attention due to their compatibility with lithium metal anodes. However, these materials typically suffer from lower ionic conductivities (10^-4 to 10^-3 S/cm) at room temperature compared to other electrolyte types and require high sintering temperatures (>1000°C), complicating manufacturing processes and increasing interfacial resistance.
Sulfide solid electrolytes, including Li2S-P2S5 glass-ceramics and thio-LISICON structures, demonstrate superior ionic conductivities approaching 10^-2 S/cm at room temperature. Their mechanical properties allow for better contact with electrodes and simpler processing at lower temperatures. However, these materials face significant challenges regarding air and moisture sensitivity, requiring stringent handling protocols. Additionally, their narrow electrochemical stability window limits compatibility with high-voltage cathode materials.
Chloride-based solid electrolytes represent a relatively newer research direction with promising ionic conductivity values. Li3YCl6 and Li3InCl6 have shown conductivities exceeding 10^-3 S/cm with potentially wider electrochemical windows than sulfides. Nevertheless, they share similar moisture sensitivity issues while presenting unique challenges in synthesis reproducibility and long-term stability.
A critical technical barrier across all solid electrolyte types remains the solid-solid interface management. The formation of stable interfaces between electrolytes and electrodes without significant resistance growth during cycling continues to challenge researchers worldwide. This interface challenge is compounded by volume changes during cycling that can create microcracks and capacity fade.
Manufacturing scalability presents another significant hurdle. Current laboratory-scale synthesis methods often involve complex procedures that are difficult to translate to industrial production. The cost-performance ratio remains unfavorable compared to liquid electrolytes, particularly for oxide systems requiring energy-intensive high-temperature processing.
Recent research trends indicate growing interest in composite and hybrid electrolyte systems that combine advantages from different material classes. Additionally, surface modification strategies and interface engineering approaches are gaining traction as potential solutions to the persistent interfacial resistance challenges.
Comparative Analysis of Chloride, Sulfide, and Oxide Electrolytes
01 Oxide-based solid electrolytes
Oxide-based solid electrolytes offer high thermal and chemical stability for battery applications. These materials typically include lithium-containing oxides that provide ionic pathways for lithium ion transport. While their ionic conductivity is generally lower than sulfide-based electrolytes, they compensate with superior stability in air and moisture. Their mechanical properties can be enhanced through composite formations or structural modifications to improve interfacial contact with electrodes.- Oxide-based solid electrolytes: Oxide-based solid electrolytes are characterized by their high thermal and chemical stability, making them suitable for high-temperature applications. These electrolytes typically include materials such as NASICON, LISICON, perovskites, and garnets. While they generally offer lower ionic conductivity compared to sulfide-based electrolytes, they demonstrate superior stability in air and against electrode materials. Their mechanical properties can be enhanced through various fabrication techniques and compositional modifications to improve their performance in solid-state batteries.
- Sulfide-based solid electrolytes: Sulfide-based solid electrolytes exhibit high ionic conductivity, often exceeding that of liquid electrolytes at room temperature. These materials include Li2S-P2S5 glass-ceramics, thio-LISICON, and argyrodite structures. Their soft mechanical properties allow for better interfacial contact with electrodes, reducing resistance. However, they are highly sensitive to moisture and air, requiring careful handling in inert environments. Recent developments focus on improving their stability while maintaining their excellent ionic conductivity properties.
- Chloride-based solid electrolytes: Chloride-based solid electrolytes represent an emerging class of materials with promising ionic conductivity and potentially lower cost compared to other types. These electrolytes, including lithium chloride-based compounds and anti-perovskite structures, offer a balance between the high conductivity of sulfides and the stability of oxides. Their mechanical properties can be tailored through compositional engineering, and they generally show better moisture stability than sulfide electrolytes while maintaining competitive ionic conductivity values.
- Composite and hybrid solid electrolytes: Composite and hybrid solid electrolytes combine different types of materials to leverage their complementary properties. These may include oxide-polymer, sulfide-polymer, or oxide-sulfide combinations. By creating these composite structures, researchers can enhance ionic conductivity while improving mechanical flexibility and interfacial compatibility. These hybrid approaches often result in improved electrochemical stability windows and better cycling performance in solid-state batteries, addressing the limitations of single-component electrolyte systems.
- Interface engineering for solid electrolytes: Interface engineering is crucial for optimizing the performance of solid electrolytes in battery applications. This involves modifying the interfaces between the electrolyte and electrodes to reduce resistance and improve stability. Techniques include surface coatings, buffer layers, and gradient compositions that facilitate ion transport across interfaces. Proper interface engineering can mitigate issues related to mechanical stress during cycling, chemical incompatibility, and space charge effects, ultimately enhancing the overall performance and longevity of solid-state batteries.
02 Sulfide-based solid electrolytes
Sulfide-based solid electrolytes demonstrate superior ionic conductivity compared to oxide types, often approaching the levels of liquid electrolytes. These materials typically contain lithium sulfide compounds that facilitate fast lithium ion transport. However, they face challenges with chemical stability, particularly sensitivity to moisture and air. Their mechanical properties include relatively high ductility, which enables better contact with electrode materials and reduces interfacial resistance.Expand Specific Solutions03 Chloride-based solid electrolytes
Chloride-based solid electrolytes represent an emerging class of materials with promising ionic conductivity and unique stability characteristics. These electrolytes typically incorporate lithium chloride compounds that create efficient ion transport channels. They offer a balance between the high conductivity of sulfides and the stability of oxides. Their mechanical properties can be tailored through composition adjustments, and they generally exhibit good compatibility with various electrode materials.Expand Specific Solutions04 Composite and hybrid solid electrolytes
Composite and hybrid solid electrolytes combine different types of materials to achieve enhanced performance characteristics. These systems typically integrate multiple electrolyte types (oxide, sulfide, chloride) or incorporate polymers and ceramics to create synergistic effects. The resulting materials can exhibit improved ionic conductivity while maintaining good mechanical properties and chemical stability. Interface engineering in these composites is crucial for optimizing ion transport across material boundaries.Expand Specific Solutions05 Interface and stability enhancement techniques
Various techniques can be employed to enhance the stability and interfacial properties of solid electrolytes. These include surface coatings, dopant additions, and specialized processing methods that improve the contact between electrolytes and electrodes. Addressing interfacial resistance is critical for achieving high performance in solid-state batteries. Mechanical properties can be optimized through grain boundary engineering and controlled crystallization to balance rigidity and flexibility requirements.Expand Specific Solutions
Leading Organizations in Solid Electrolyte Development
The solid electrolyte market for next-generation batteries is currently in a transitional growth phase, with global market size expanding rapidly due to increasing demand for safer, higher-energy-density battery technologies. Chloride, sulfide, and oxide electrolytes each present distinct advantages and limitations in terms of ionic conductivity, stability, and manufacturing scalability. Leading companies like Samsung SDI, LG Energy Solution, and Toyota are heavily investing in oxide electrolytes for their stability advantages, while SVOLT and Hyundai focus on sulfide systems for superior conductivity. Academic-industrial partnerships involving institutions like University of Houston and Kyoto University are accelerating chloride electrolyte development. The competitive landscape is characterized by strategic patent positioning and vertical integration efforts as companies prepare for commercial deployment in the next 3-5 years.
Samsung SDI Co., Ltd.
Technical Solution: Samsung SDI has developed a multi-faceted approach to solid electrolytes, with significant advancements across all three major types. Their sulfide-based technology focuses on argyrodite-type Li6PS5X (X=Cl, Br, I) electrolytes with ionic conductivities reaching 5-7 mS/cm at room temperature. Samsung has implemented proprietary synthesis methods that reduce impurities and optimize particle morphology for improved performance. For oxide electrolytes, they've developed NASICON-type structures with lithium aluminum titanium phosphate (LATP) compositions, achieving conductivities around 1 mS/cm while maintaining excellent environmental stability. Their chloride electrolyte research centers on Li3MCl6 (M=Y, In, Er) systems with conductivities approaching 1-2 mS/cm, offering a balance between performance and stability. Samsung's approach includes composite electrolyte systems that strategically combine different materials to overcome individual limitations.
Strengths: Comprehensive research across multiple electrolyte types; strong manufacturing capabilities for scaling production; extensive integration experience with various battery chemistries. Weaknesses: Sulfide electrolytes still face challenges with air sensitivity and mechanical properties; oxide systems have lower conductivity than sulfides; interface engineering between electrolytes and electrodes remains challenging.
Panasonic Intellectual Property Management Co. Ltd.
Technical Solution: Panasonic has developed comprehensive solid electrolyte technologies focusing on all three major categories. Their sulfide-based systems center on Li2S-P2S5 glass-ceramic compositions with ionic conductivities reaching 3-5 mS/cm at room temperature. Panasonic has pioneered specialized mechanical milling and heat treatment processes to optimize the crystallinity and conductivity of these materials. For oxide electrolytes, they've focused on perovskite-type Li3xLa2/3-xTiO3 (LLTO) and garnet-type Li7La3Zr2O12 (LLZO) structures, achieving conductivities of 0.1-1 mS/cm while maintaining excellent environmental stability. Their chloride electrolyte research explores Li3MCl6 systems (where M represents metals like Y, Er, or In) with conductivities approaching 1 mS/cm. Panasonic's approach includes composite electrolyte systems that strategically combine different materials to leverage their complementary properties while mitigating individual weaknesses.
Strengths: Extensive manufacturing expertise for scaling production; strong integration capabilities with existing battery technologies; comprehensive approach addressing multiple electrolyte types. Weaknesses: Sulfide electrolytes require complex handling procedures due to air sensitivity; oxide systems have lower conductivity than sulfides; interface stability between electrolytes and electrodes remains challenging despite Panasonic's interface engineering efforts.
Key Patents and Scientific Breakthroughs in Solid Electrolytes

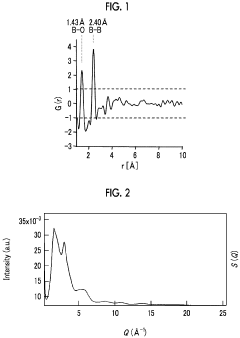

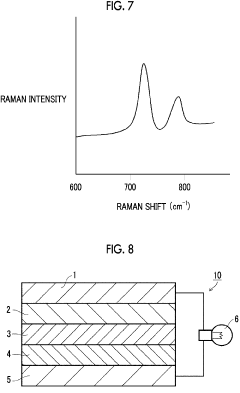

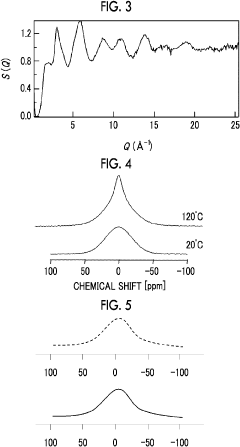

Oxide solid electrolyte, binder, solid electrolyte layer, active material, electrode, all-solid state secondary battery
PatentPendingUS20230327192A1
Innovation
- Development of an oxide solid electrolyte composition represented by General Formula (I) containing Li, B, O, and X elements, where X includes F, Cl, Br, I, S, N, H, Se, Te, C, P, Si, Al, Ga, In, Ge, As, Sb, and Sn, optimized to improve interfacial adhesiveness and ionic conductivity without relying on heating treatments, using mechanical milling and pressurization treatments to enhance the properties.
Lithium ion conductive composite solid electrolyte and solid-state battery using the same
PatentActiveUS20220238912A1
Innovation
- A composite solid electrolyte is developed by uniformly mixing an oxide-based crystalline solid electrolyte with a sulfide-based amorphous solid electrolyte, using a garnet-type oxide-based electrolyte and an argyrodite-based sulfide-based electrolyte, which are mixed in specific weight ratios and processed using uniaxial pressing to enhance lithium ion conductivity and workability.
Safety and Stability Assessment of Different Electrolyte Classes
Safety assessment of solid electrolytes is paramount for the development of next-generation batteries. Chloride, sulfide, and oxide solid electrolytes exhibit distinct safety profiles that significantly impact their commercial viability. Understanding these differences is crucial for strategic technology development and risk management in battery applications.
Oxide solid electrolytes demonstrate superior thermal stability, typically remaining stable at temperatures exceeding 800°C. This characteristic makes them particularly suitable for high-temperature applications where thermal runaway risks must be minimized. Additionally, oxides generally exhibit chemical inertness against electrode materials and atmospheric components, reducing reactivity concerns during manufacturing and operation.
Sulfide-based electrolytes present more complex safety considerations. While offering excellent ionic conductivity, they react with moisture to produce toxic hydrogen sulfide gas, necessitating stringent handling protocols and hermetically sealed battery designs. Their lower thermal stability compared to oxides (decomposition often beginning around 400-500°C) creates additional safety challenges for applications in extreme environments.
Chloride solid electrolytes occupy a middle ground in the safety spectrum. They demonstrate better moisture stability than sulfides but remain more reactive than oxides. Their thermal decomposition typically occurs between 500-700°C, providing reasonable safety margins for most consumer applications. However, potential chlorine gas evolution under certain failure conditions requires careful consideration in battery design and management systems.
Electrochemical stability windows vary significantly across these electrolyte classes. Oxides generally offer wider stability windows (often exceeding 4.5V), enabling compatibility with high-voltage cathode materials without significant interface degradation. Sulfides and chlorides typically exhibit narrower stability windows (3-3.5V), requiring protective interlayers or careful electrode selection to prevent continuous decomposition during cycling.
Long-term aging and stability testing reveals that oxide electrolytes maintain performance over thousands of cycles with minimal degradation. Sulfide systems often show progressive interface resistance growth, while chlorides demonstrate intermediate stability characteristics. These differences directly impact battery lifetime predictions and safety over extended use periods.
Environmental considerations also factor into safety assessments. End-of-life management for sulfide-based batteries presents unique challenges due to potential toxic byproduct formation during recycling or disposal. Chloride systems raise concerns regarding potential environmental impacts of halide leaching, while oxide-based systems generally present fewer environmental hazards, aligning better with sustainable development goals.
Oxide solid electrolytes demonstrate superior thermal stability, typically remaining stable at temperatures exceeding 800°C. This characteristic makes them particularly suitable for high-temperature applications where thermal runaway risks must be minimized. Additionally, oxides generally exhibit chemical inertness against electrode materials and atmospheric components, reducing reactivity concerns during manufacturing and operation.
Sulfide-based electrolytes present more complex safety considerations. While offering excellent ionic conductivity, they react with moisture to produce toxic hydrogen sulfide gas, necessitating stringent handling protocols and hermetically sealed battery designs. Their lower thermal stability compared to oxides (decomposition often beginning around 400-500°C) creates additional safety challenges for applications in extreme environments.
Chloride solid electrolytes occupy a middle ground in the safety spectrum. They demonstrate better moisture stability than sulfides but remain more reactive than oxides. Their thermal decomposition typically occurs between 500-700°C, providing reasonable safety margins for most consumer applications. However, potential chlorine gas evolution under certain failure conditions requires careful consideration in battery design and management systems.
Electrochemical stability windows vary significantly across these electrolyte classes. Oxides generally offer wider stability windows (often exceeding 4.5V), enabling compatibility with high-voltage cathode materials without significant interface degradation. Sulfides and chlorides typically exhibit narrower stability windows (3-3.5V), requiring protective interlayers or careful electrode selection to prevent continuous decomposition during cycling.
Long-term aging and stability testing reveals that oxide electrolytes maintain performance over thousands of cycles with minimal degradation. Sulfide systems often show progressive interface resistance growth, while chlorides demonstrate intermediate stability characteristics. These differences directly impact battery lifetime predictions and safety over extended use periods.
Environmental considerations also factor into safety assessments. End-of-life management for sulfide-based batteries presents unique challenges due to potential toxic byproduct formation during recycling or disposal. Chloride systems raise concerns regarding potential environmental impacts of halide leaching, while oxide-based systems generally present fewer environmental hazards, aligning better with sustainable development goals.
Manufacturing Scalability and Cost Analysis
The manufacturing scalability and cost analysis of solid electrolytes represents a critical factor in determining their commercial viability for mass-market applications. Among the three main categories—chloride, sulfide, and oxide-based solid electrolytes—significant differences exist in their production processes, raw material costs, and scalability potential.
Oxide-based solid electrolytes currently demonstrate the most mature manufacturing infrastructure, leveraging established ceramic processing techniques from other industries. These materials can be produced using conventional sintering methods at high temperatures (typically 1000-1400°C), which while energy-intensive, utilize equipment already widely available in industrial settings. The raw materials for oxides such as LLZO (Li7La3Zr2O12) are relatively abundant, though certain components like lanthanum can introduce cost pressures.
Sulfide-based electrolytes present intermediate manufacturing challenges. Their sensitivity to moisture necessitates specialized handling environments, typically requiring inert gas processing facilities that significantly increase production costs. However, their lower processing temperatures (300-600°C) compared to oxides offer potential energy savings. The mechanical milling processes often employed for sulfide electrolyte synthesis face challenges in scaling beyond laboratory quantities, with current industrial-scale production yields showing inconsistent quality.
Chloride-based solid electrolytes face the most significant manufacturing hurdles. Their extreme sensitivity to moisture demands ultra-dry processing environments, more stringent than those required for sulfides. Additionally, the corrosive nature of chlorides necessitates specialized equipment materials, further increasing capital expenditure requirements. These factors currently position chlorides as the most expensive category to manufacture at scale.
Cost analysis reveals that material expenses constitute 40-60% of production costs for oxides, while for sulfides and chlorides, specialized processing environments contribute 50-70% of total costs. Current production costs estimate oxide electrolytes at $100-300/kg, sulfides at $300-800/kg, and chlorides exceeding $1000/kg, though these figures continue to decrease with technological advancements and economies of scale.
Future cost reduction pathways differ across these categories. For oxides, process optimization and energy efficiency improvements offer the greatest potential. Sulfides may benefit most from developing moisture-resistant compositions that simplify handling requirements. Chlorides require fundamental breakthroughs in processing technology to achieve competitive manufacturing costs, though their superior ionic conductivity continues to drive research interest despite these challenges.
Oxide-based solid electrolytes currently demonstrate the most mature manufacturing infrastructure, leveraging established ceramic processing techniques from other industries. These materials can be produced using conventional sintering methods at high temperatures (typically 1000-1400°C), which while energy-intensive, utilize equipment already widely available in industrial settings. The raw materials for oxides such as LLZO (Li7La3Zr2O12) are relatively abundant, though certain components like lanthanum can introduce cost pressures.
Sulfide-based electrolytes present intermediate manufacturing challenges. Their sensitivity to moisture necessitates specialized handling environments, typically requiring inert gas processing facilities that significantly increase production costs. However, their lower processing temperatures (300-600°C) compared to oxides offer potential energy savings. The mechanical milling processes often employed for sulfide electrolyte synthesis face challenges in scaling beyond laboratory quantities, with current industrial-scale production yields showing inconsistent quality.
Chloride-based solid electrolytes face the most significant manufacturing hurdles. Their extreme sensitivity to moisture demands ultra-dry processing environments, more stringent than those required for sulfides. Additionally, the corrosive nature of chlorides necessitates specialized equipment materials, further increasing capital expenditure requirements. These factors currently position chlorides as the most expensive category to manufacture at scale.
Cost analysis reveals that material expenses constitute 40-60% of production costs for oxides, while for sulfides and chlorides, specialized processing environments contribute 50-70% of total costs. Current production costs estimate oxide electrolytes at $100-300/kg, sulfides at $300-800/kg, and chlorides exceeding $1000/kg, though these figures continue to decrease with technological advancements and economies of scale.
Future cost reduction pathways differ across these categories. For oxides, process optimization and energy efficiency improvements offer the greatest potential. Sulfides may benefit most from developing moisture-resistant compositions that simplify handling requirements. Chlorides require fundamental breakthroughs in processing technology to achieve competitive manufacturing costs, though their superior ionic conductivity continues to drive research interest despite these challenges.
